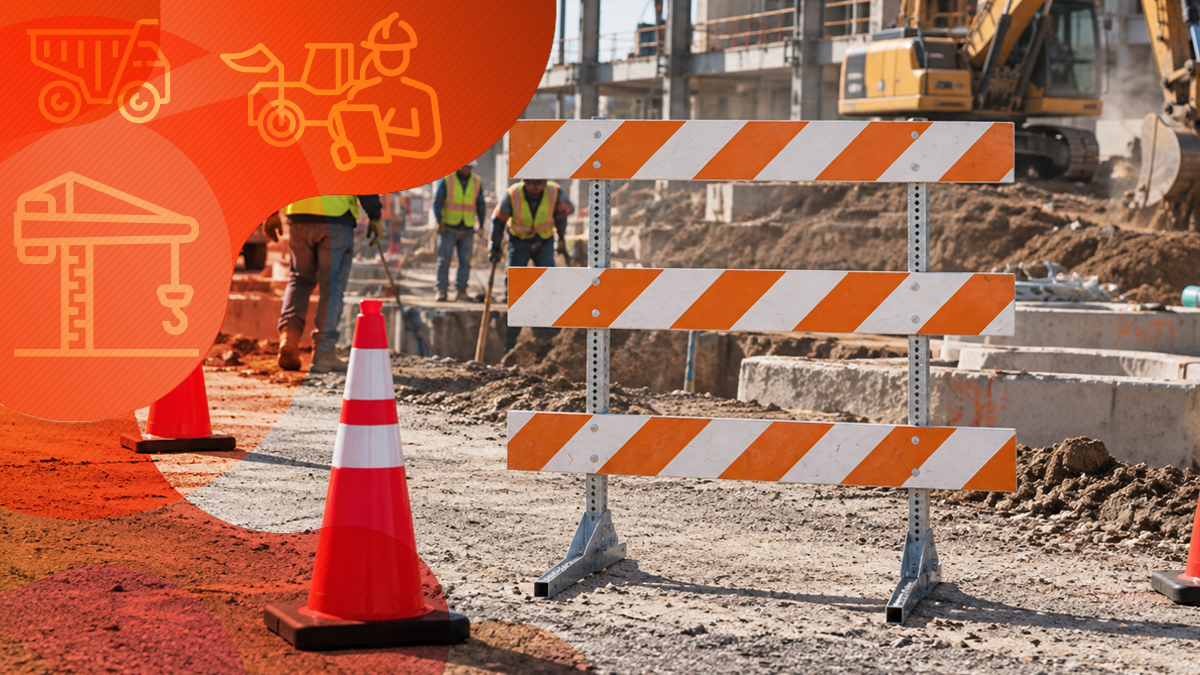

Why is MUTCD Critical to Traffic Safety?

MUTCD stands for the Manual on Uniform Traffic Control Devices, issued by the Federal Highway Administration of the US Department of Transportation. It was first published in 1935, and the second edition was released in 1942. New editions of the MUTCD are published as needed and not on a set schedule.

For example, the third edition was published in 1948, but the fourth did not appear until 1961. The 11th edition was released in December 2023 and includes significant changes from the 10th edition published in 2009. The structure changed to accommodate self-driving and electric vehicle signage. The primary divisions are:

• Signs. This section describes regulatory, guide, temporary, and informational signs for expressways, highways, routes, and rural roads.
• Markings. This chapter discusses curb, pavement, and crosswalk markings. The manual outlines how to use rumble strips and other pavement markings to delineate sidewalks and islands.
• Highway Traffic Signals. The discussion covers digital signage used on major roadways. It also establishes the positioning of signals for maximum visibility.
• Automated Vehicles. This new section covers signs and signals for self-driving vehicles.
• Temporary Traffic Control. This chapter is where most work zone safety equipment lives — barricades, drums, cones, delineators, and other channelizing devices used to guide traffic safely around construction, maintenance, and other disruptions to normal traffic flow.
• School Traffic Control. This section outlines the signs and signals in and around school areas.
• Railroad and Light Rail Traffic Control. It discusses what and how to control traffic near railroad crossings.
• Bicycle Traffic Control. This group of signs informs cities of how and where to place signage for bicycles and vehicles.

The federally-mandated MUTCD sets a uniform traffic control standard across the United States.

While the states have some flexibility in how they implement the standards, they must maintain sufficient uniformity so drivers from Nevada can safely navigate the roads in Texas — and so a crew setting up a work zone in either state knows exactly how their drums, cones, and barricades need to be spaced, colored, and placed.

Key Takeaways

• The MUTCD is the federally mandated standard for all traffic control devices in the US — not just signs, but barricades, drums, cones, and delineators used in work zones.
• Compliance has been law since 1971 under Title 23 of the Code of Federal Regulations, Part 655, Subpart F.
• Non-compliance can mean loss of federal funding for public agencies, and increased liability and legal exposure for contractors and private companies.
• MUTCD 11 (released December 2023) updated rules affecting crosswalk markings, pedestrian signals, changeable messaging, speed limits, and RRFBs — several of which change how barricades, drums, and cones must be placed around pedestrians and work zones.
• Properly rated and correctly placed barricades, drums, and cones do most of the daily work of protecting workers and the public, and can significantly reduce a company's accident and litigation risk.

Why is MUTCD Needed?

At the turn of the 20th century, automobiles were used for Sunday drives and brief excursions. Unfortunately, few roads existed, and signage was non-existent. People were often lost, and accidents were frequent. Several states worked to establish a nationwide standard that was eventually incorporated into the first MUTCD guidelines.

Unlike Model-T drivers, today's drivers have built-in GPS to prevent getting lost. However, they still rely on those green and white signs to tell them how far to the next rest stop or city.

Temporary signs guide drivers through construction and road repair zones. They establish safe driving speeds to protect workers and drivers.

Consistency

MUTCD defines what individual traffic control devices mean and how they should be displayed.

Can you imagine the roadway chaos if every state used different equipment to mark a lane closure? How would a Floridian recognize a work zone taper in Tennessee if the drum spacing and coloring were completely different? Because MUTCD standardizes the color, size, and placement of barricades, drums, and cones, people can quickly identify that they're approaching a work zone and adjust their driving accordingly.

For example, barricades and drums are required to use orange and white retroreflective striping, so drivers instantly recognize them as temporary traffic control — day or night.
Cones taper traffic gradually out of a closed lane, and their spacing is dictated by posted speed to give drivers enough warning distance. Speed limits are posted in most construction zones to protect workers. This standardization tells drivers that a disruption in traffic flow requires their attention, regardless of which state they're driving through.

Safety

Consistency in the placement of barricades, drums, and cones ensures safety on top of consistency in signage.
 All-way stop signs warn drivers to stop before entering an intersection and pay closer attention to approaching vehicles. In work zones, properly spaced drums and cones do the equivalent job — they force drivers to slow down and follow a predictable path, reducing the chance of a vehicle drifting into a closed lane or a worker's space.

Barricades alert drivers to full closures and route them around hazards entirely. Posting a flagger sign alongside a line of cones or drums reinforces the message: lower your speed and be prepared to stop.

By maintaining consistency in how these devices are deployed, drivers can navigate confidently through a work zone, whether it's one they pass every day or one they've never seen before.

Is MUTCD Compliance Required?

The simple answer is yes. MUTCD contains the national standard for all traffic control devices (TCDs) — a category that includes not just signs and signals but barricades, drums, cones, delineators, and other channelizing devices used in temporary traffic control.

The standards apply to all public agencies and owners of private roads used for public travel across the United States. It became law in 1971 in Title 23 of the Code of Federal Regulations Part 655, Subpart F.

Failure to comply with MUTCD standards may result in the following:

• Loss of Federal Funds. The Federal Highway Administration can withhold federal funding for transportation from states that do not comply.
• Increased Liability. Local agencies and private contractors may face legal action if an accident occurs because of non-compliant traffic control devices — including improperly placed or substandard barricades, drums, or cones in a work zone.
• Legal Action. Legal proceedings could be initiated against any out-of-compliance entity.

While the loss of federal funds may be the most significant consequence of state non-compliance, liability and legal action are of greater concern to private enterprises, particularly contractors responsible for setting up and maintaining work zone equipment.

What is in MUTCD 11?

The more significant changes in MUTCD 11 are in chapters on crosswalk markings, pedestrian signals, changeable messaging, speed limits, and rectangular rapid flashing beacons (RRFBs).
Changes to sign designs will be released in phases. Until the 2024 Edition of the Standard Highway Signs (SHS) document is released, organizations should follow the designs in the 2004 Edition of SHS and its 2012 Supplement. A projected completion date for each sign design can be found on the MUTCD website.

Crosswalk Markings

Legally established crosswalks at non-intersection locations must have crosswalk markings, and crosswalks at controlled traffic signals should remain. High-visibility crosswalk markings should appear at uncontrolled crosswalks and where enhanced visibility is needed. Transverse markings should only appear at intersections or where stop and yield signs are posted.

Pedestrian Signals

Placement of accessible pedestrian signals should comply with the Americans with Disabilities Act and Section 504 of the Rehabilitation Act of 1974. An engineering assessment is no longer required.

Changeable Messaging

The MUTCD 11 only allows traffic operation, regulatory, warning, and guidance information to appear on changeable signage. Messages unrelated to traffic control should not appear. All language should be clear, without secondary meanings or pop culture references.

Speed Limits

Before MUTCD 11, speed limits were set using the "85th percentile rule," which states that the speed limit should be the speed most drivers consider safe and reasonable under normal driving conditions. The manual lists exceptions to the rule and states that an engineering study should be performed before establishing a speed limit.

RRFBs

RRFBs, Rectangular Rapid Flashing Beacons, or can now be supplemental measures at uncontrolled pedestrian, school, and rail crossings. RRFBs can also be used at crosswalks, where traffic has free-flow turn lanes. If an audible device is used, the message must state warning lights are flashing.

When a new sign design will be available depends on the Federal Highway Administration. Anyone involved in traffic safety should check the MUTCD website for updates.

FAQ

Does the MUTCD regulate barricades, drums, and cones, or just signs?

The MUTCD regulates all traffic control devices, which is a broad category that includes barricades, drums, cones, delineators, signals, and pavement markings in addition to signs. The Temporary Traffic Control chapter covers most of the equipment used in work zones.

Is MUTCD compliance mandatory for private contractors?

Yes. MUTCD standards apply to all public agencies and to owners of private roads used for public travel. It has been federal law since 1971 under Title 23 of the Code of Federal Regulations, Part 655, Subpart F.

What happens if a company uses non-compliant barricades or cones in a work zone?

Non-compliant equipment increases liability exposure. If an accident occurs and the traffic control devices didn't meet MUTCD standards, the responsible agency or contractor can face legal action, and public agencies risk losing federal transportation funding.

How does MUTCD 11 affect work zone equipment?

MUTCD 11 updated requirements around crosswalk markings, pedestrian signals, speed limits, and RRFBs. These changes affect how barricades, drums, and cones must be placed to keep pedestrian routes accessible and to maintain proper spacing based on posted work zone speeds.

How does spacing for drums and cones get determined?

Spacing is generally based on the posted or anticipated speed of traffic through the work zone. Higher speeds require longer tapers and greater distances between devices to give drivers adequate warning and reaction time.

Where can I find the current MUTCD standards for a specific device?

The Federal Highway Administration maintains the official MUTCD text and updates on its website, including projected release dates for revised sign and device designs still being phased in under the 11th edition.

MUTCD's Impact on  Construction Companies

Drums and cones create the taper that shifts vehicles out of a closed lane. Barricades physically block off hazards and closed pathways. Delineators keep drivers on a defined path through a shifted lane configuration. Together, these devices do most of the day-to-day work of keeping a job site safe, and maintaining MUTCD compliance on this equipment significantly reduces accident and liability risk.

MUTCD guidelines also include requirements for workers' and nonworkers' safety around a job site. For example, separate and usable pathways — clearly defined with barricades and channelizing devices — should be provided to keep pedestrians at a safe distance from a construction site.

Pedestrian routes must be physically separated from vehicular traffic using compliant barricades or channelizing devices, and alternative routes marked out with the same equipment must be provided if a pedestrian walkway is closed.

For construction companies, MUTCD compliance starts with the right equipment. SONCO provides compliant barricades, drums, cones, and delineators that help crews create safer work zones, guide pedestrians clearly, and reduce liability risk.
